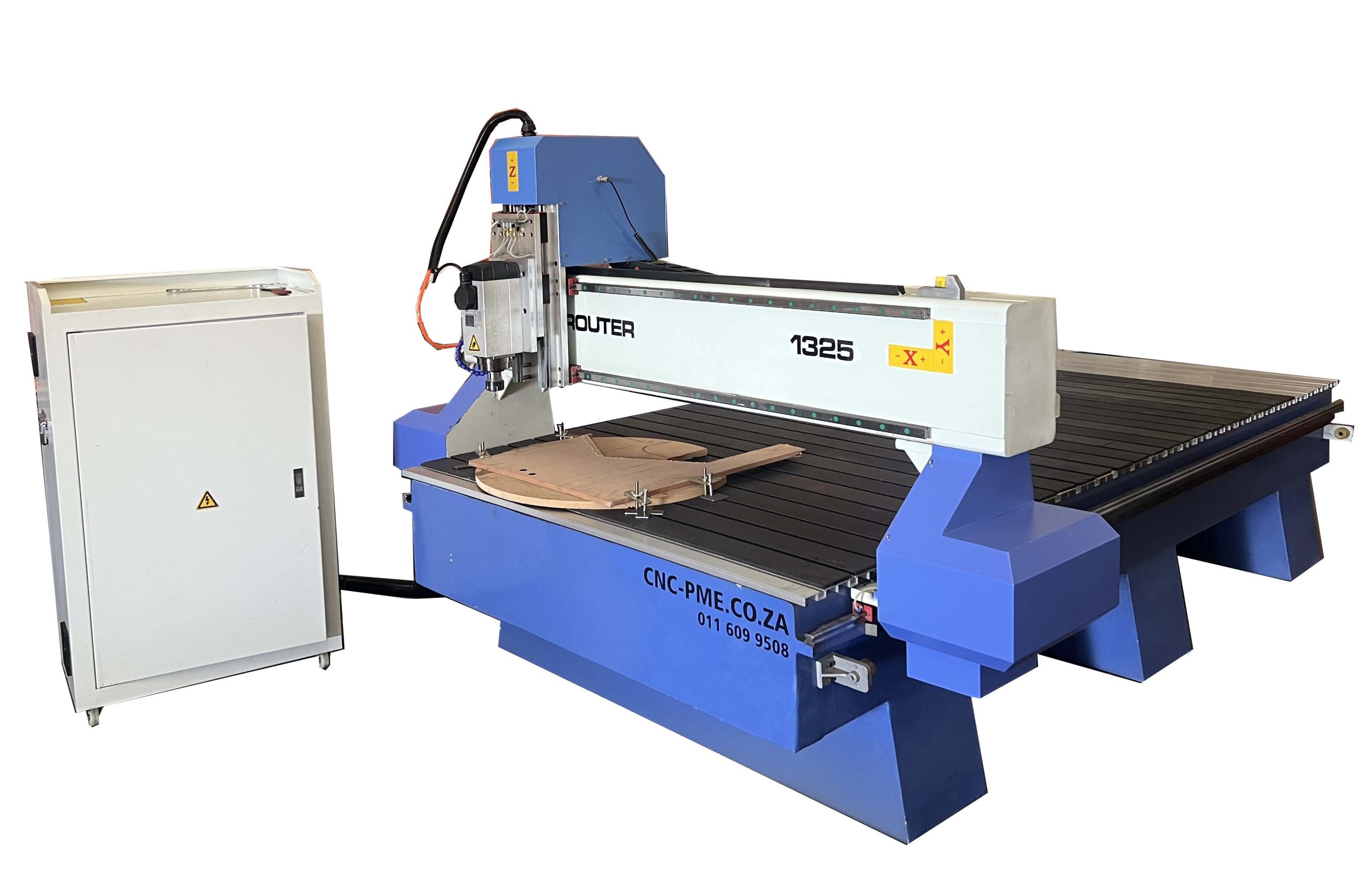

PS 1325 CNC ROUTER MACHINE
PRODUCT DETAILS:
| X,Y,Z Working Area | 1300x2500x200mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Welded structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z transmission | Ball Screw |
| Rail Configuration | 20 square rail |
| Max. Traveling Rate | 20000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle Power | 4.5KW air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220V/50HZ/Single phase |
| Command Language | G Code,u00, mmg, PLT, HPG |
| Operating System | DSP control System |
| Computer Interface | USB |
| Software Compatibility | Ucancam V12 |
| N.W. | 1200Kg |
Industry Applications
It is mainly used in acrylic , PVC board , MDF board and other boards processing , wave board production , various types of artificial board shaped cutting , LED , neon channel literally cutting , light box molding and so on.
High Quality Machines
CNC Laser Durban will provide high quality machines for our new and old friends. Customers’ satisfaction is our biggest concern
Market Leaders
It is our mission to become a market leader in South Africa.
