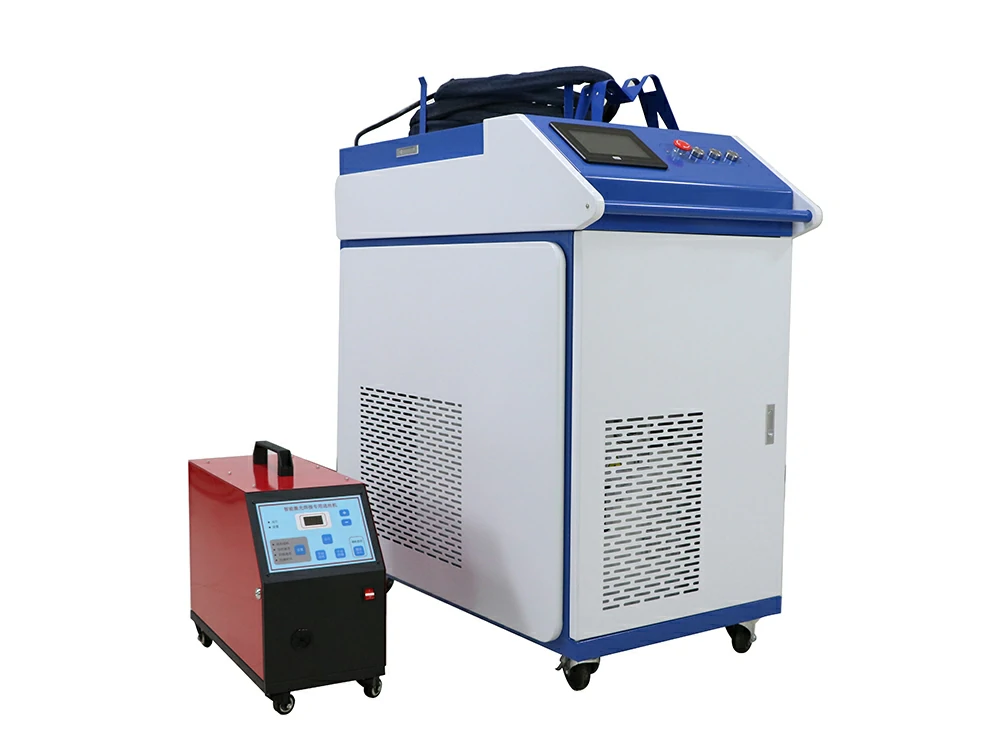

LCW Series 3-in-1 Handheld Laser Welder

FIBER LASER WELDING & CLEANING & CUTTING 3 IN1 MACHINE

Laser cleaning and welding machine can remove the object surface resin, the paint, the oil pollution, stains, dirt, rust, and oxide coatings. Can weld iron, aluminium alloy, stainless steel and other materials.

PRODUCT DETAILS:

Machine Model	LCW Series Laser Welding & Cleaning System
Laser power	1500W 2000W (optional)
laser wave length	1064nm
Fiber length	Standard10M / Maximum 15M
W0	0~120 mm/s
Cooling chiller	Industrial water chiller
Working environment temperature range	15~35 degree
Welding thickness recommendations	0.5-3mm
working voltage	220 V
Cleaning parameters	cleaning width : 0-80mm
Focus height : 600mm

High Quality Machines

CNC Laser Durban will provide high quality machines for our new and old friends. Customers’ satisfaction is our biggest concern

Market Leaders

It is our mission to become a market leader in South Africa.

Welding, Cleaning and Cutting Modes

The LCW Series combines handheld laser welding, surface cleaning and auxiliary cutting functions in one published product. Confirm the intended primary process, material, joint type and daily workload because each mode requires its own operating setup and safety review.

Joint Fit-Up, Wire Feed and Sample Testing

For welding, provide butt, lap or fillet joint details, material thickness and expected gap condition. Wire selection and feed settings should be confirmed with representative test pieces. Samples should be evaluated for penetration, bead appearance, distortion and repeatability.

Information Required for a 3-in-1 Quote

Material and thickness range
Joint type and typical gap
Welding, cleaning and cutting priorities
Required cleaning width
Daily operating time and work environment
Available 220V supply and safety controls
